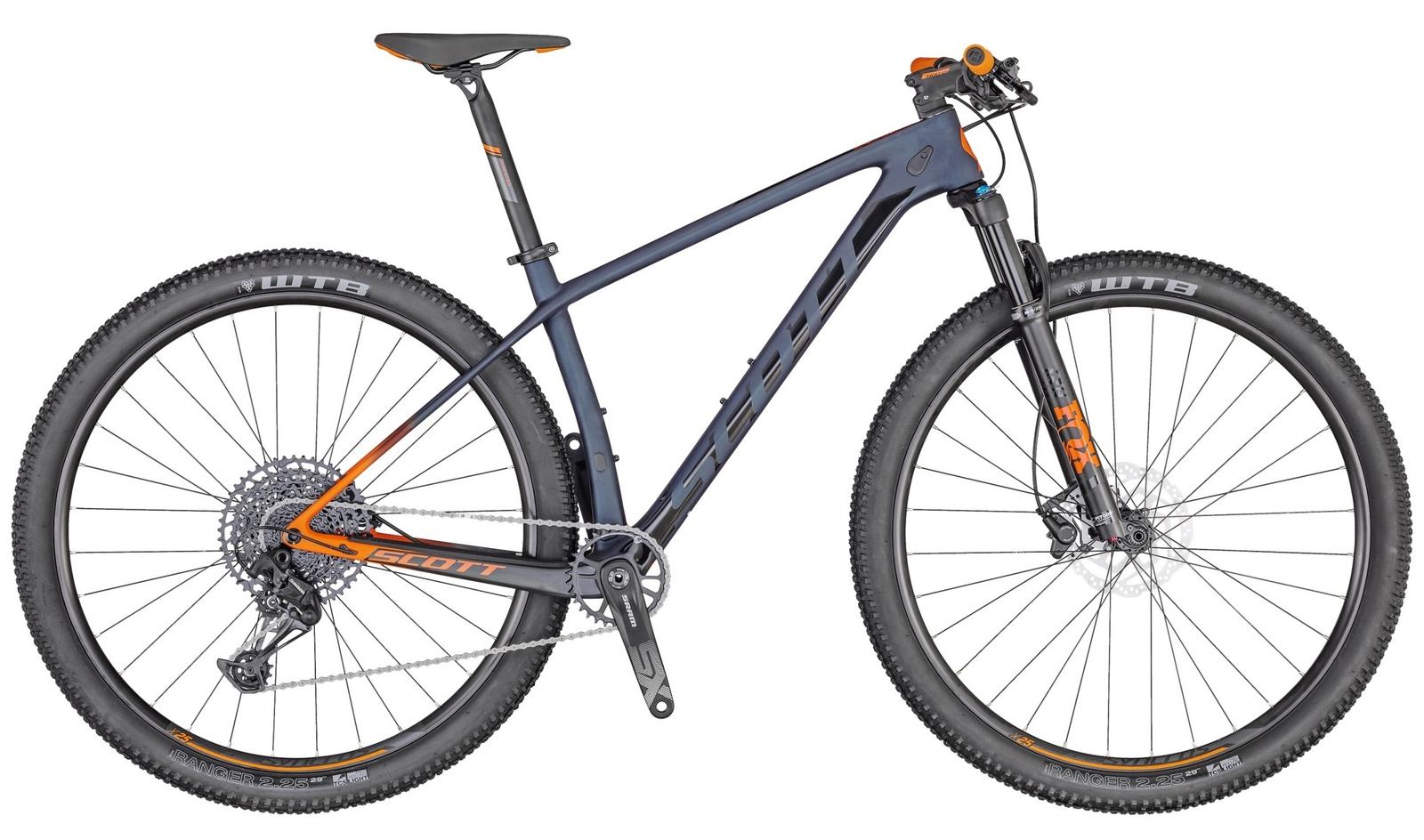

Scott Scale 930

The SCOTT Scale 930 boasts a super light Carbon Fiber frame. FOX suspension, a SRAM Eagle drivetrain and Syncros components combine to create a lightweight and efficient racing machine.

FRAME
Scale 3 Carbon / IMP technology / HMF
BB92 / SW DM dropouts for Boost 12x148mm
SDS2 advanced Shock & Standing Damping System
ICCR Cable routing

FORK
FOX 32 Float Rhythm
Grip 3 / 3-Modes / 15x110mm QR axle / tapered steerer
Reb. Adj. / Lockout / 100mm travel

REMOTE SYSTEM
SCOTT RideLoc Technology / below bar remote
3 modes / integ. Grip clamp

HEADSET
Syncros Pro Drop in / Tapered 1.5"-1 1/8"
Bearing diameter size 42mm and 52mm

REAR DERAILLEUR
SRAM SX / Eagle 12 Speed

SHIFTERS
SRAM SX Eagle Trigger

BRAKES
Shimano MT401 Disc
180/F and 160/R SM-RT10 CL rotor

CRANKSET
SRAM SX Eagle DUB Boost
32T

BB-SET
SRAM DUB PF integrated / shell 41x92mm

HANDLEBAR
Syncros Fraser 2.0 / Alloy 6061
T shape Flat / 9° / 740mm
Syncros Pro lock-on grips

H'STEM
Syncros FL2.0
6° / integrated Spacer & Top Cap
6061 Alloy / 31.8mm / 1 1/8"

SEATPOST
Syncros Duncan 2.0 / 10mm offset
31.6x400mm

SEAT
Syncros Belcarra Regular 2.5

HUB (FRONT)
Shimano HB-MT400-B CL / 15x110mm

HUB (REAR)
Shimano FH-MT400-B CL / Boost 12x148mm

CHAIN
SRAM CN NX Eagle

CASSETTE
SRAM SX-PG1210 / 11-50 T

SPOKES
Stainless Black 15G / 1.8mm

RIMS
Syncros X-25 / 32H / 25mm
Tubeless ready

TIRES
WTB Ranger / 2.25" / 60 TPI / Aramid Bead / TCS Light
Fast Rolling / Tubeless Ready

APPROX WEIGHTS IN KG
11.50

APPROX WEIGHTS IN LBS
25.35
